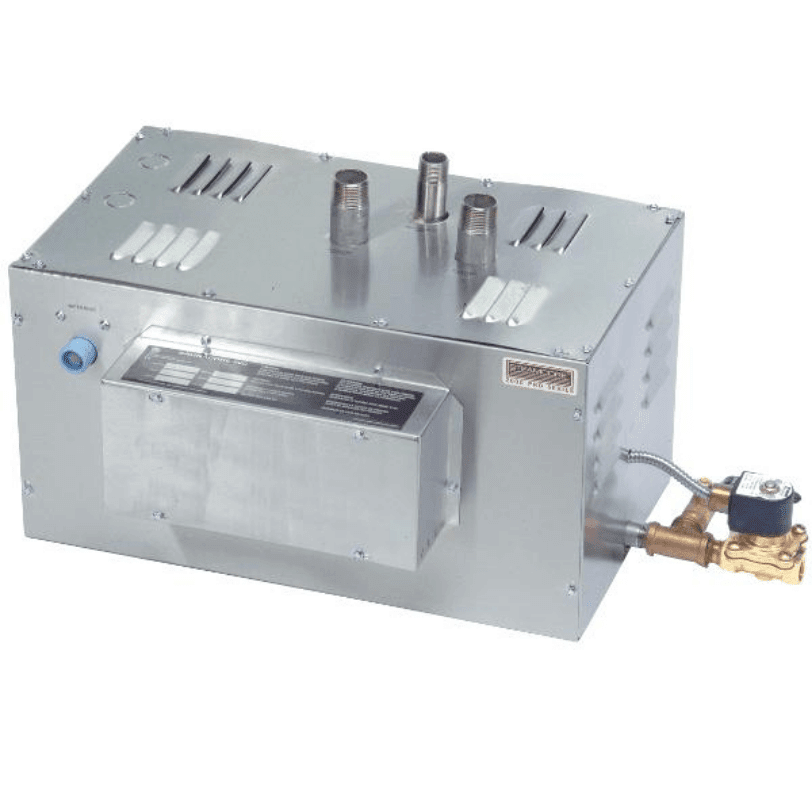

The Steamcore Pro-Series is a commercial steam generator unit designed to last through the rigours of daily extended use. The Pro-Series of steam generators are top choice for commercial applications and high-demand customers, like fitness centres, gyms, condos, hotels, and luxury homes.
Available from 9 KW to 36 KW and in 600 volt versions for an extra charge, the Steamcore Pro-Series models of commercial steam generators feature the highest quality components and backed by years of proven reliability. Each unit is carefully inspected and mechanically tested to provide unsurpassed performance. Unique engineering innovations ensure that any Steamcore model will meet the needs of almost every type of high-traffic steam room.
Made in Canada by Saunacore, the STEAMCORE Pro-Series commercial steam generator will last a lifetime. When it needs maintenance parts, they’ll ship quickly from the Canadian manufacturer, so you can ensure you or your client will have minimal down time. Steam bathing has been known for many years. Both saunas and steam baths offer comforting warmth. We discuss steam bathing in more detail here.Â
Pro-Series Steam Generator Package Features
- Commercial Steam Generator
- Surgical Stainless Steel boiler tank
- Industrial large diameter low density incoloy heating element (300 series)
- Automatic Rinse and Flush operation – Factory installed
- Elegance Steamheads with aroma oil reservoir
- Made in Canada
- Available in 600 Volt Version
- Includes SSI Control
Sizing and Selection
Measure the length, width and height (in feet) of the steam shower. Multiply
the three measurements together to get the basic volume in cubic feet.
L x W x H = CUBIC FEET x multiplier
Wall Finish of Shower (is multiplied by)
Acrylic, cultured marble
Ceramic Tile on Cement Board 1.25
Ceramic Tile on Mortar Bed 1.30
Glass or Glass Block 1.20
Porcelain tile on Cement Board 1.60
NATURAL STONE TILE (granite, marble, slate)
On Mortar Board 2.00
Natural Stone Slabs over 1/2” thick 2.25
Each Exterior Wall(s) insulated 1.10
Example:
A ceramic steam shower with the dimensions 7ft length by 5ft wide and
7ft high (7ft x 5ft x 7ft = 245), is 245 Cubic feet.
Since the steam shower has ceramic wall finishes, it then requires a 25%
cubic footage increase.
(Ceramic tile) 25% x (steam shower) 245 = 61.25 ft
The wall finish cubic feet is then added to the original dimensions to
calculate the total cubic footage, which in this case is 306.25ft.
(ceramic tile) 61.25 + (steam shower) 245 = 306.25 ft
Now select the next size of Steamcore Commercial Steam Generator model that exceeds
the calculated room cubic feet. This case the KWS (9000 watts)
generator is required. If there is doubt in size, it is recommended to
choose the next larger size.

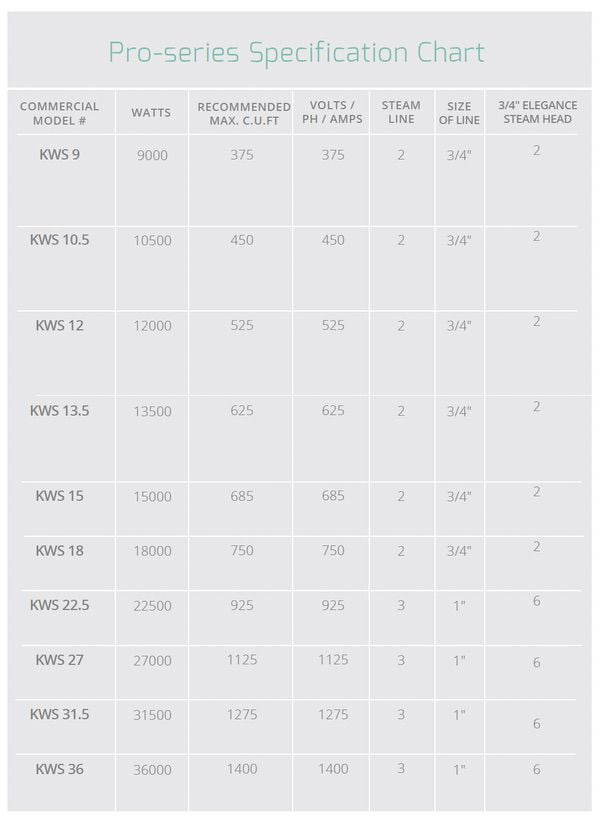

Specifications
| Specification | 9-18 KW (Pro-Series with SSI Package) | 22.5-36 KW (Pro-Series with SSI Package) |
|---|---|---|
| Input Voltage | 208-600VAC Three Phase | |
| Safety Valve | 3/4" NPT | |
| Steam Outlet | (2) 3/4" NPT | (3) 1" NPT |
| Steam nozzles | (2) steam nozzles | (6) steam nozzles |
| Drain Outlet (2) Auto & Manual | 1/2" NPT | |
| Water Inlet | 1/2" NPT | |
| Physical Dimensions | 28 inches length, 15 inches depth, 15 inches height | 34 inches length, 22 inches depth, 22 inches height |
| Weight | 50 lbs | 80 lbs |
20-25 psi water pressure reducer valve required (field installed not supplied)
Pro-Series Series Standard Equipment
(refer to Saunacore catalogue for more details)
- Smart Engineering PCB electronics
- Up To 5 Year Warranty
- Stainless steel exterior housing
- Industrial Grade Incoloy heating elements
- Stainless steel boiler tank
- Split tank boiling system
- Auto Drain cycle
- Rapid Steam start up
- Stainless steel construction throughout
- 20ft data control cable (extension available)
- Brass intake/outtake solenoid valves
- Pressure relief valve factory installed
- Xtreme Steam Technology (constant steam)
- Compact for efficient steam production
- DUAL manual/auto hi-limit safety switch
- 3 probe water level sensor system for accuracy
The steam generator includes: Stainless steel split tank, industrial incoloy heating elements, auto drain, brass intake/drain valves, Xtreme Steam technology, smart engineering pcb electronics, dual hi-limit safety trip device, triple water level sensing probes.
Steamcore Pro-Series SSI Package Time/Temp/Nozzle
Installation Notes
- Install this generator to the supplied installation guide.
- Follow local plumbing and electrical codes.
- Choose appropriate generator for room volume.
- Steam room suggested max height is 8ft.
- Always round up when calculating the total cubic ft.
- Unit must be connected with unions for easy removal and must have ample room for service and accessibility.
Canadian Manufacture
