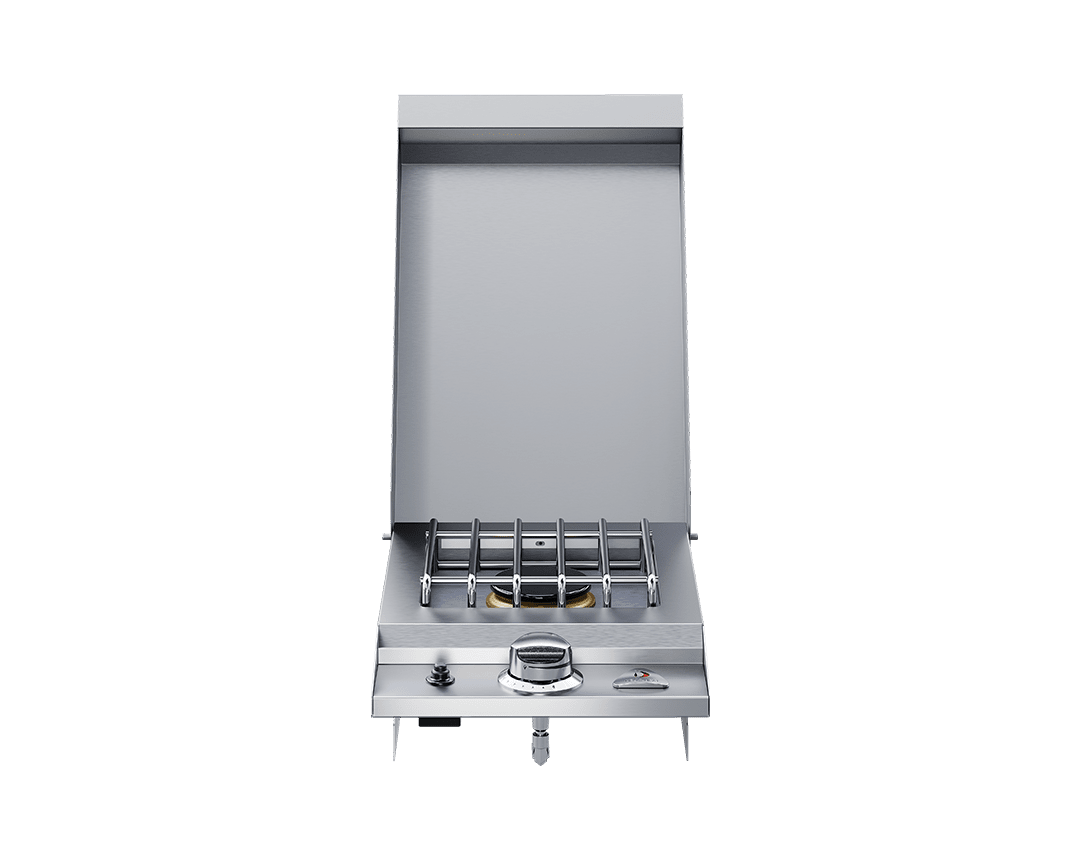

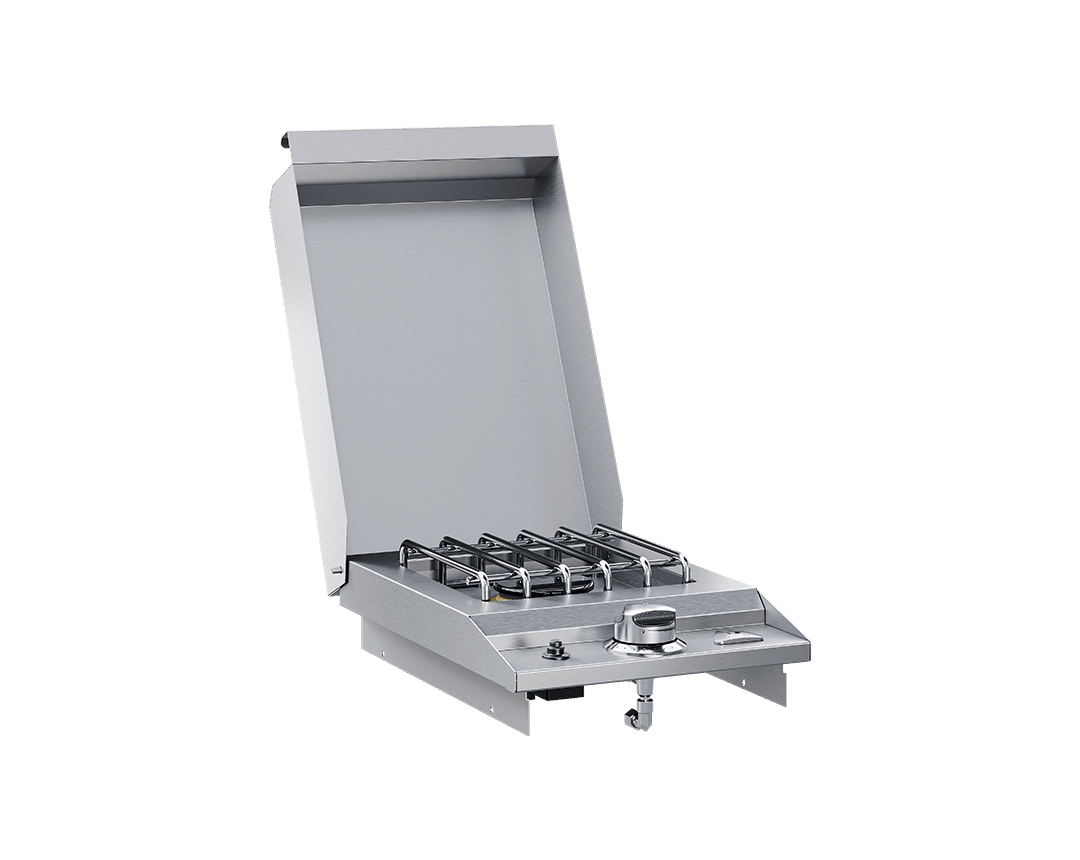

Delta Heat Single Side Burner, Drop In
Features
- Drop-in model
- 304 stainless steel construction
- 13,500 BTU sealed burner
- Battery powered electronic ignition
- Stainless steel top cover
- Made in USA
Specifications
| Power Requirements | |
|---|---|
| Electrical Supply | 1.5 VDC Battery operated |
| Gas Requirements | |
| Fuel | Natural Gas or Liquid Propane |
| Gas Supply | 3/4” ID line |
| Gas Inlet | 1/2” NPT female |
| Total BTU | 13,500 |
| Clearance Requirements | |
| Clearance | Requires Minimum 12” all around |
| Enclosure | Non-Combustible Enclosure Only |
| Cutout Dimensions | |
| Opening Width | 10.625 inch |
| Opening Height | N/A |
| Opening Depth | 16.25 inch |
| Shipping | |
| Box Dimensions | 16 x 25 x 10 (inches) |
| Shipping Weight | 21 lbs |
