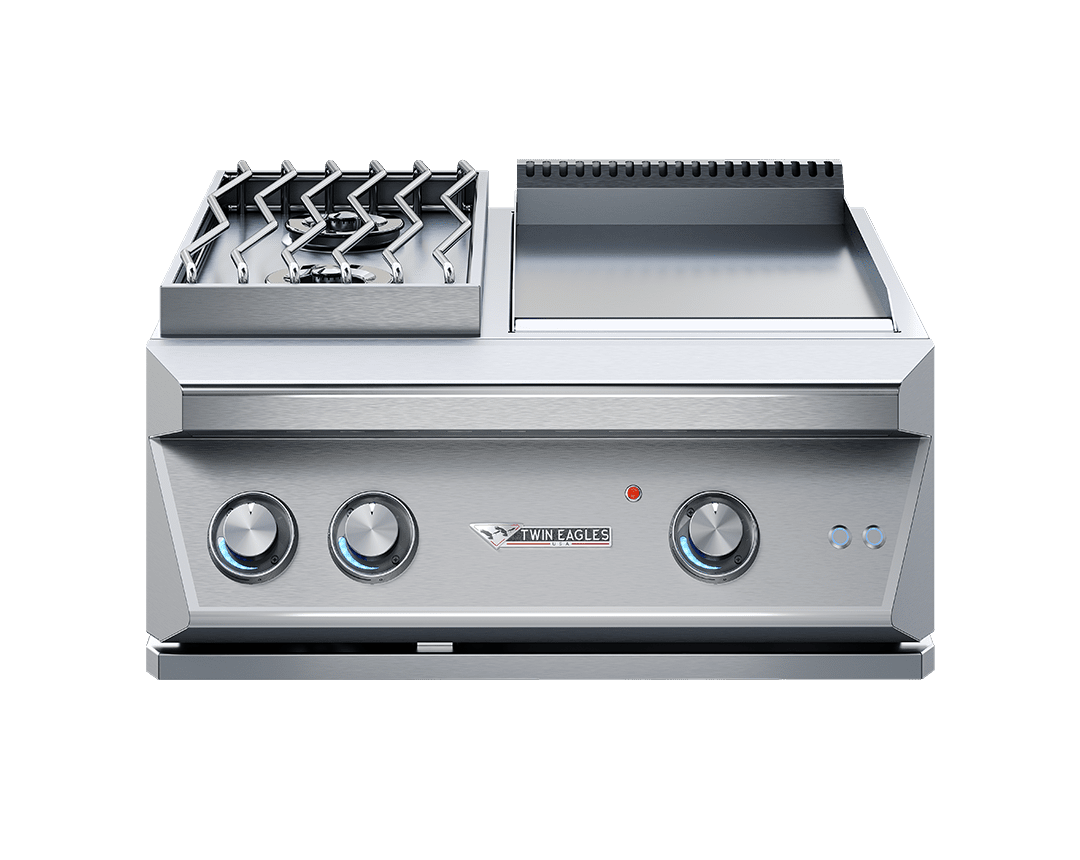

Twin Eagles Teppanyaki Gas Griddle with Side Burner
Thermostatically controlled gas griddle with 20,000 BTU of power output. Convenience, versatility, and uncompromising performance in an elegant design.
Features
- 20,000 BTU stainless teel griddle burner
- Griddle thermostat control with heat on indicator light
- Double Side burner includes two 17,500 BTU dual-ring sealed burners
- Stainless steel covers for both sides; griddle and burners
- Exclusive control illumination
- Stainless steel, solid 8mm thick surface
- Heat on indicator lights
- Hot surface ignition with safety gas valve
- Stainless steel cover
- Exclusive Control Illumination
GENERAL
Model TEBC30-C
POWER REQUIREMENTS
Electrical Supply 120V, 60Hz, 450W, 4A
Electrical Service 15 amp dedicated circuit
Power Cord Length 5 feet Receptacle 3 prong grounding plug
GAS REQUIREMENTS
Natural Gas or Liquid Propane Gas
Supply 3/4” ID line Gas Inlet 1/2” NPT female
Total BTU 55,000
CLEARANCE REQUIREMENTS
Combustible Requires Insulating Jacket and Minimum 12” all around Non-Combustible Minimum 1” all around
CUTOUT DIMENSIONS
Width 28.50 inch Height 11.50 inch Depth 24.25 inch
